Almost all-automatic – The KURRE spool winder

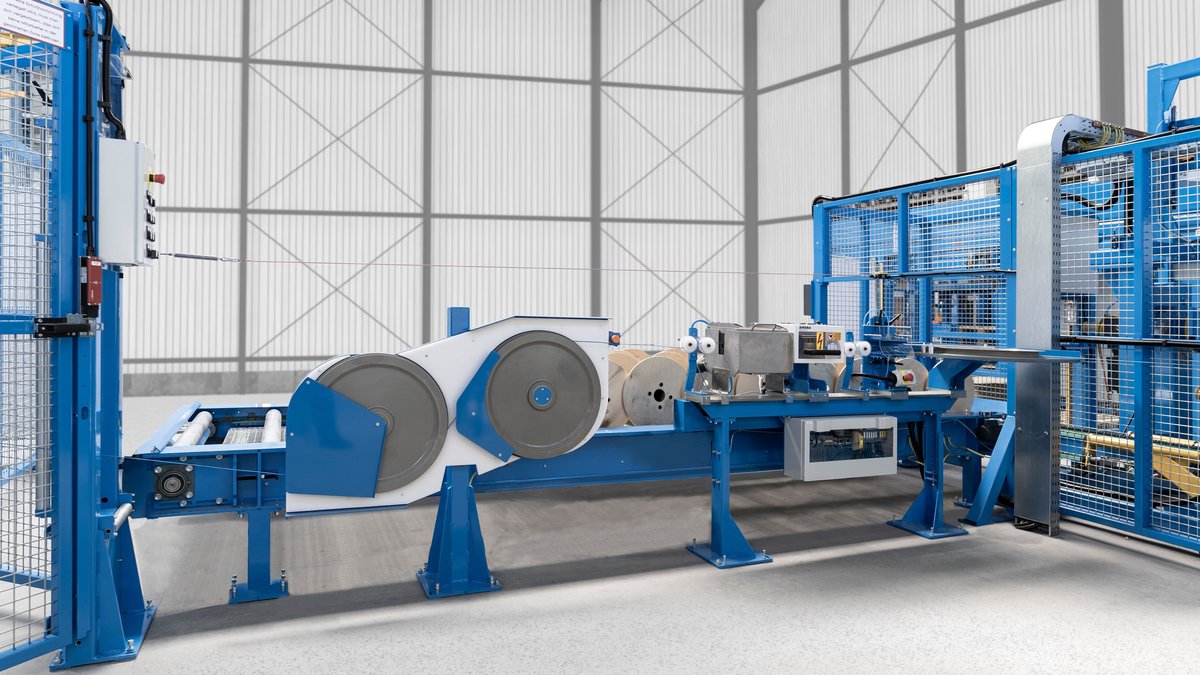

KURRE’s automatic spool winder is characterized by a high degree of automation that increases productivity without sacrificing flexibility and quality.
In the current version, products with a diameter of 3- 15 mm, from a production drum with a maximum outer diameter of 2800 mm and a weight of up to 20 t, can be processed fully automatically on single-use spools.
The machine is designed for easy operation and efficiency at the same time. Product or coil changes, for example, are possible with just a few simple steps and cable defects are detected, cut out and safely sorted out on a separate pallet.
Our “spool winder” concept is individually configurable and can be integrated into any available production site.
Spool Ø 800 – 2800 mm / spool weight up to 20 t
Drying unit with nozzle, spark tester and tester for automatically extracting cable faults

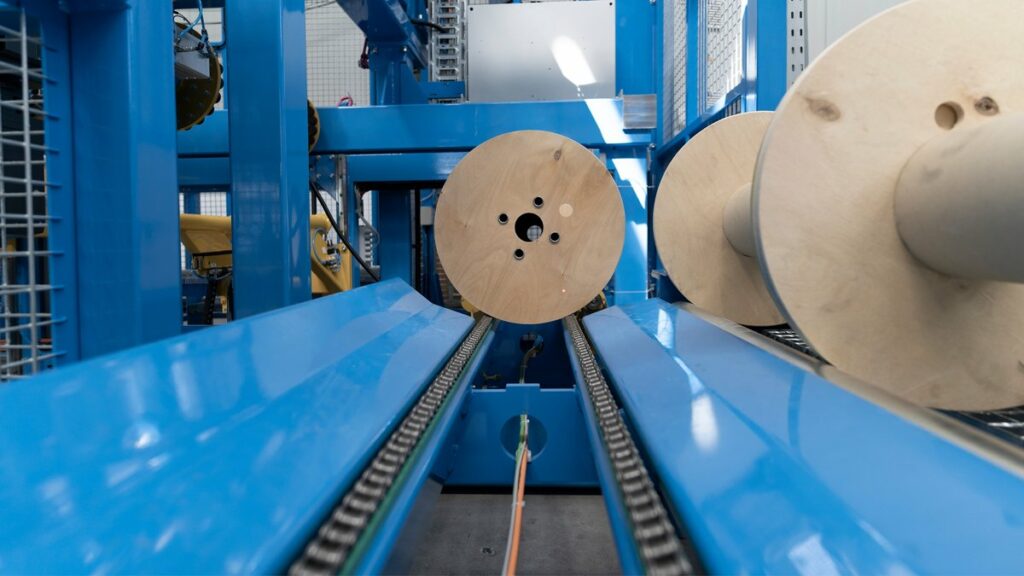

Spool magazine as roller coaster
Automatic packaging into stretch foil / labeling

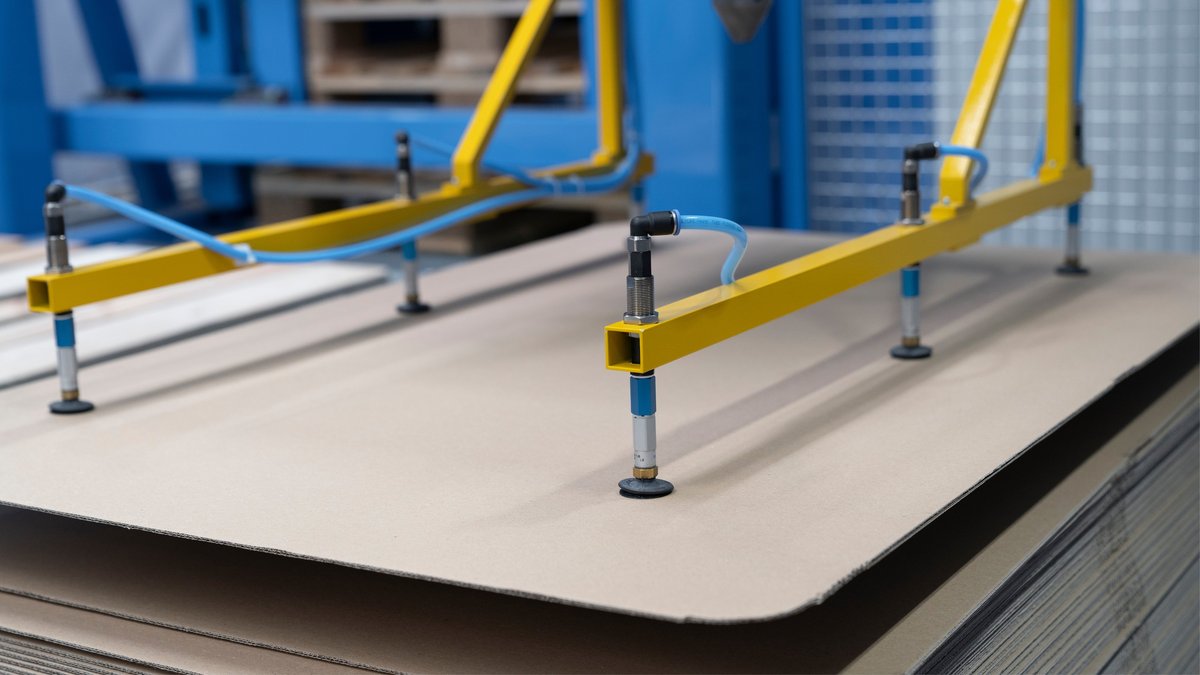

Vacuum unit for carton layer pads
Coil palletizing via user-defined packing patterns
Automatic length cutting, labeling, palletizing and stretching
