General product overview
General description of the product category

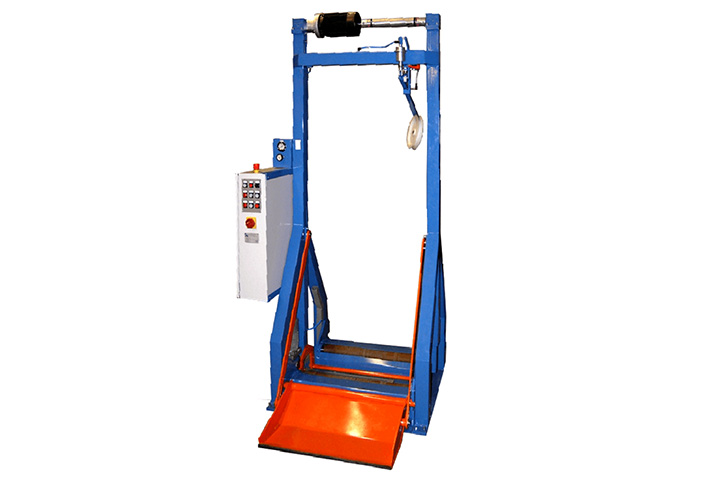

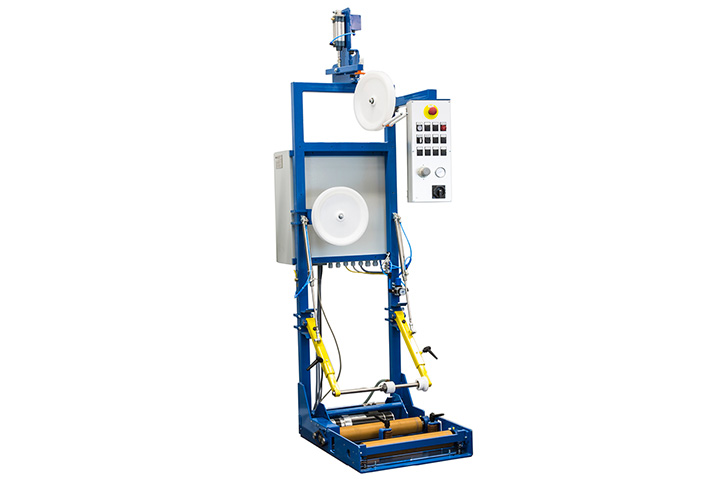

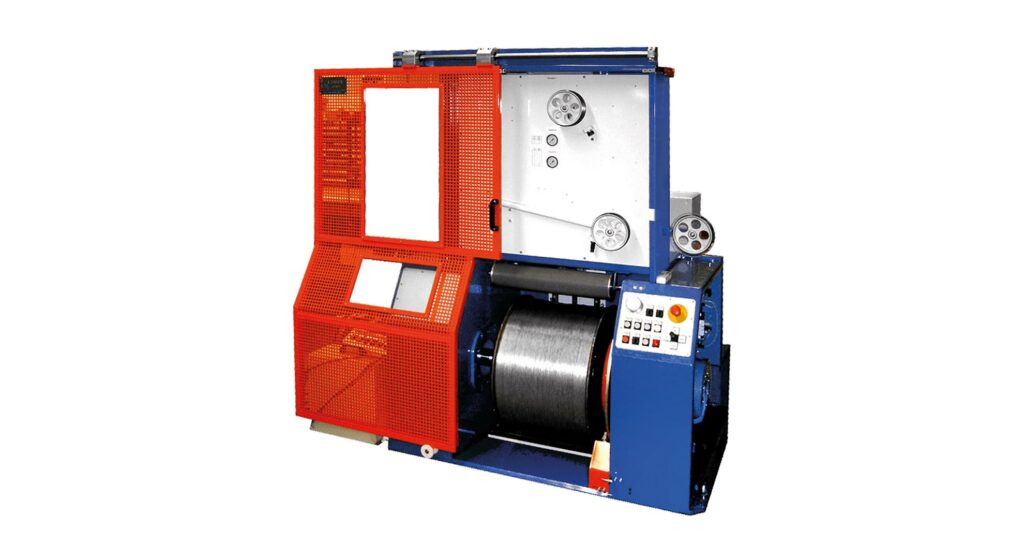

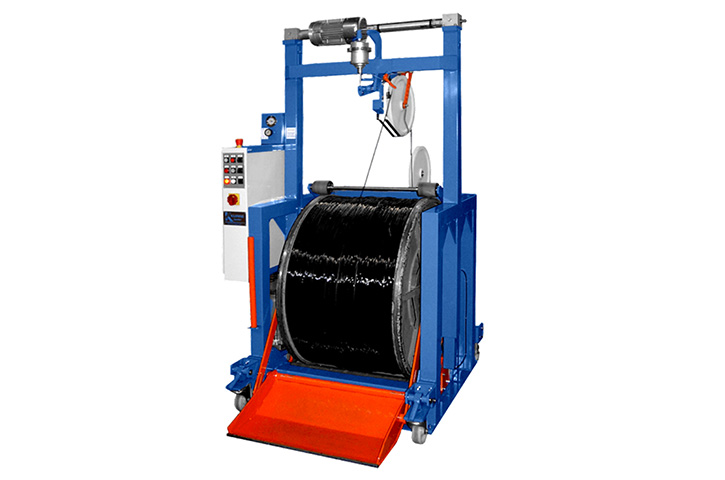

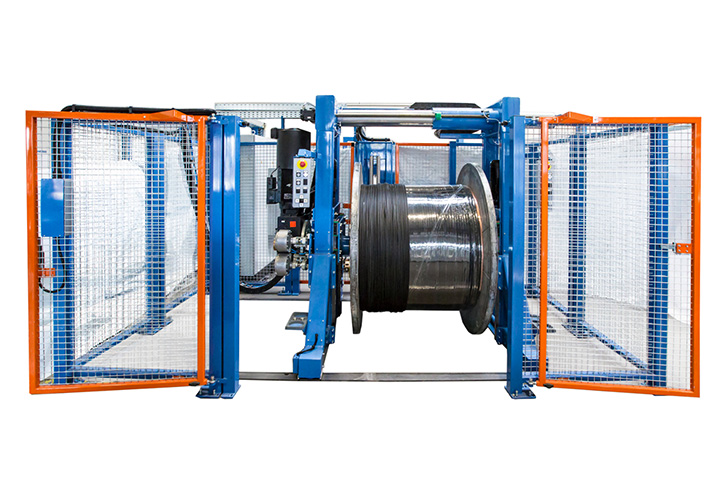

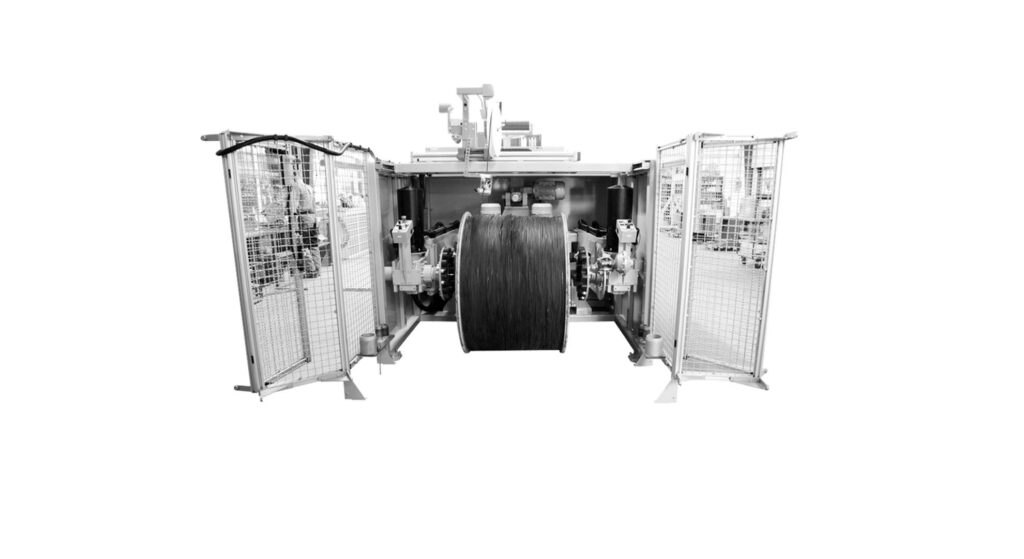

PINTLE PAYOFFS
Realizable designs
- Designed as lift arm, pintle, parallelogram portal payoffs
- Drive via pin or friction plate
- Spool lifting hydraulically or electrically
- Spool clamping pneumatic, hydraulic or electromotive
- Traversing execution possible
- If required with integrated dancer

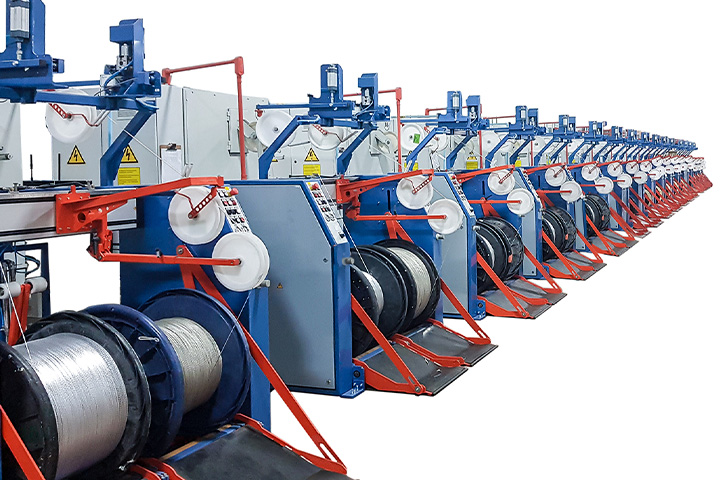

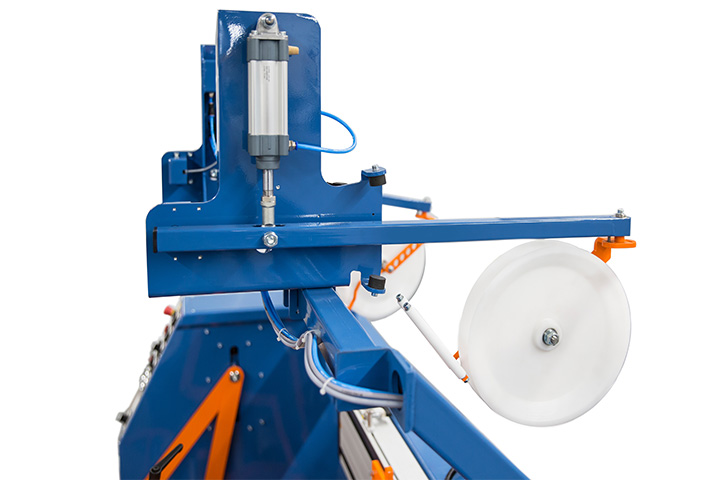

- Can be realized as double payoff
Border areas of this product category
Spool flange diameter
250 – 3,000 mm
Spool weight
max. 20,000 kg
Winding speed
max. 500 m/min.
Tension force
10 – 5000 N
General
FLANGE DRIVEN PAYOFF
Realizable designs
- Compact design
- Drive via spool flange
- Tension force pneumatically adjustable
- Smooth product removal variants via roller or dancer
- Optionally with a spool lift function
- Also available as combined unwinding/rewinding unit
Border areas of this product category
Spool flange diameter
250 – 1250 mm
Spool weight
max. 1000 kg
Winding speed
max. 60 m/min.
Tension force
3 – 300 N
General

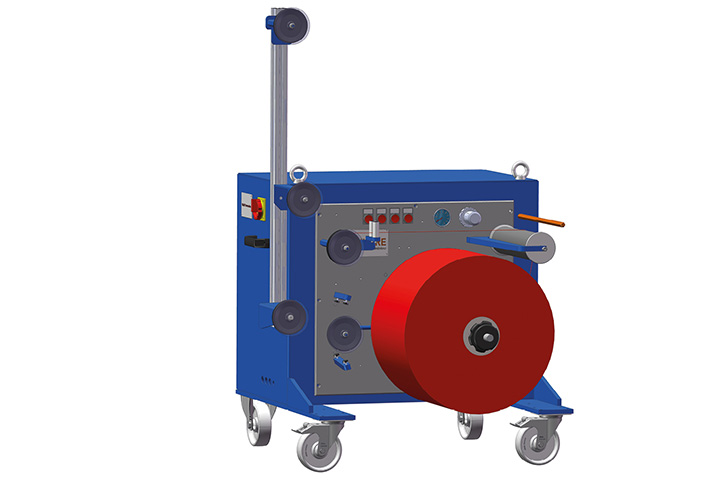

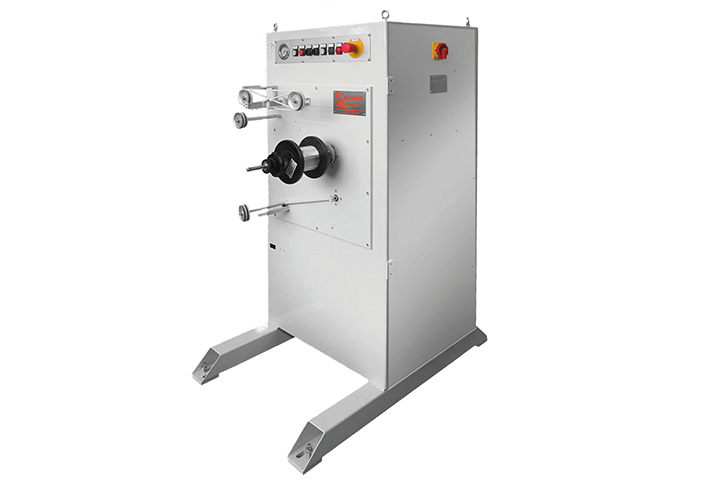

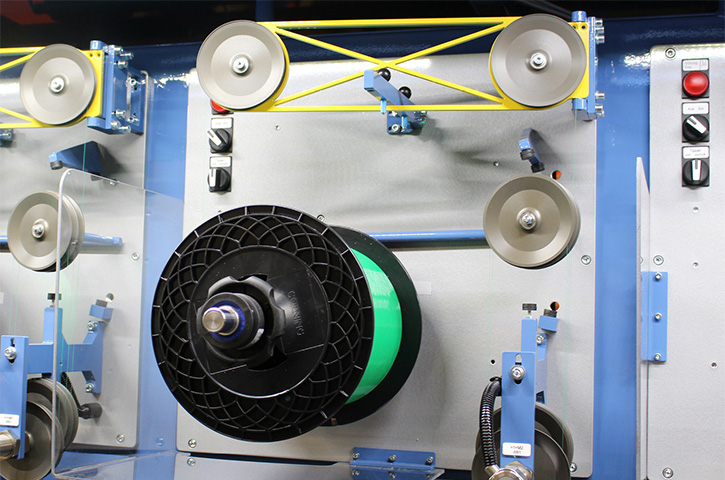

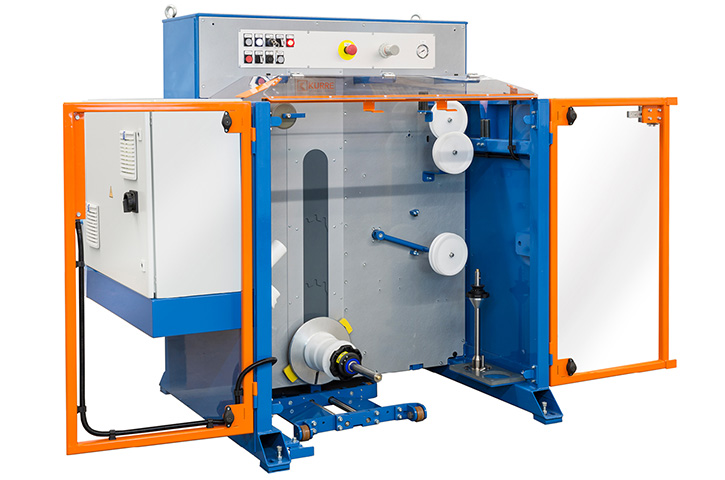

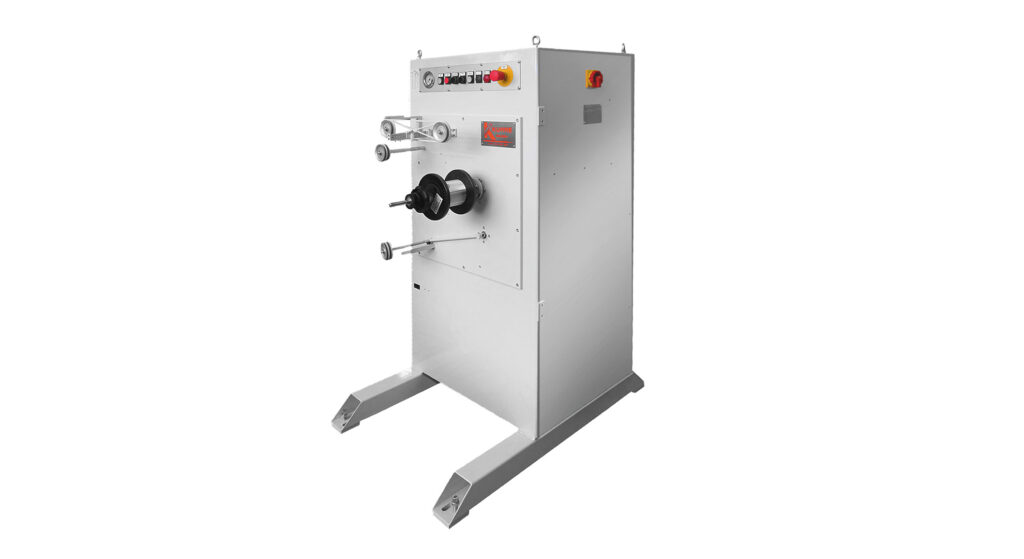

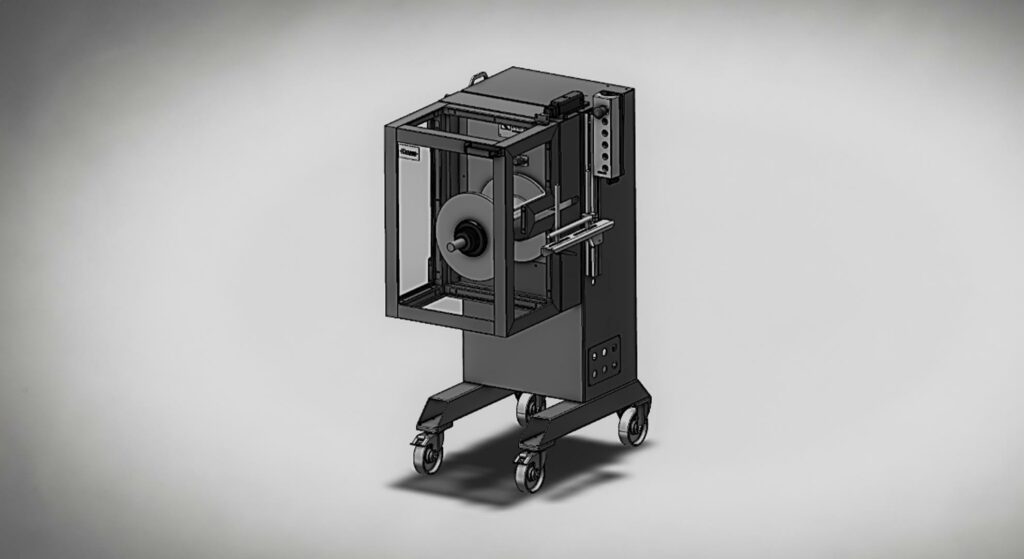

SHAFT PAYOFF
Realizable designs
- Compact design
- Changeable spool shafts
- Smooth product delaying via roller, swing arm or traversing spool
- Optional with spool lift function

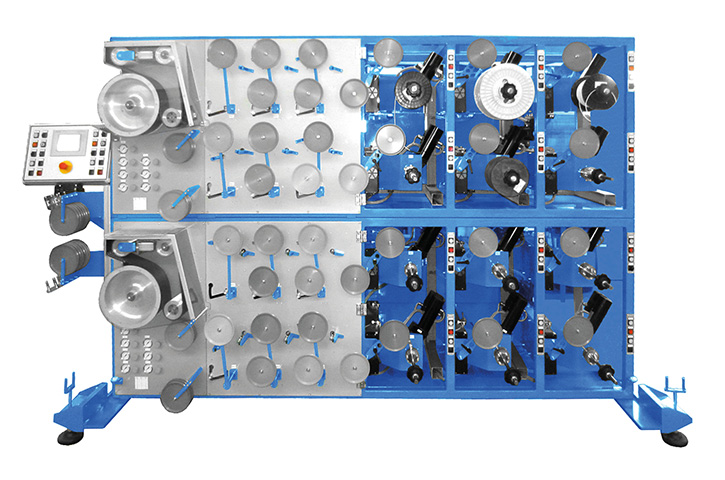

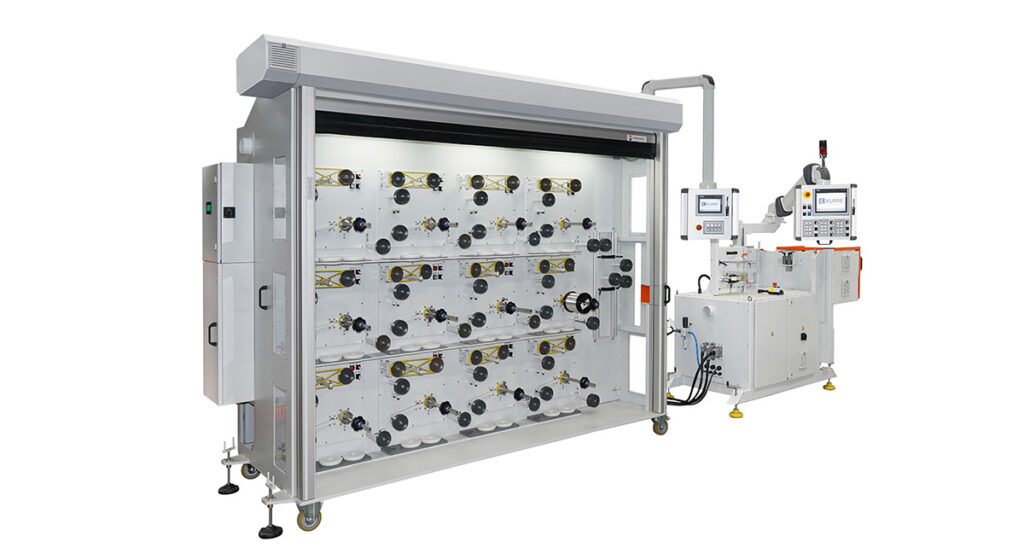

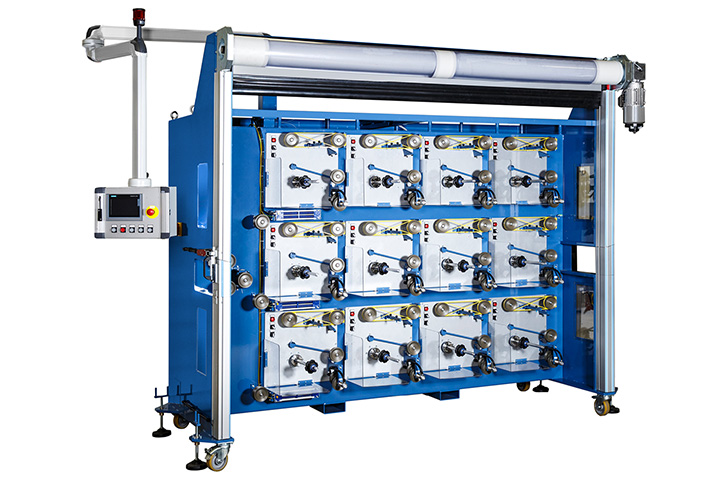

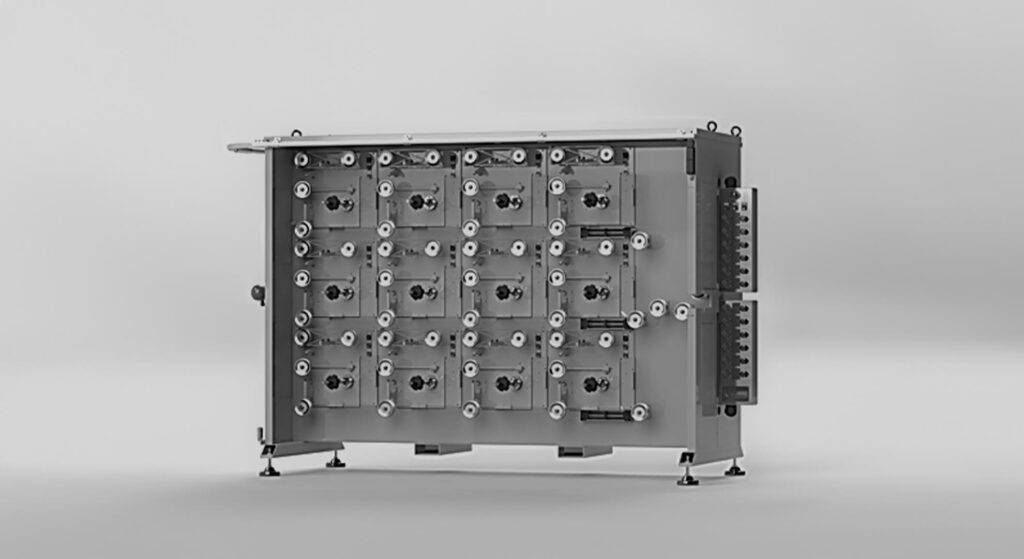

- Modular design: 1 to 24 payoff stations can be integrated
Border areas of this product category
Spool flange diameter
100 – 800 mm
Spool weight
max. 100 kg
Winding speed
max. 200 m/min.
Tension force
0.1 – 50 N
